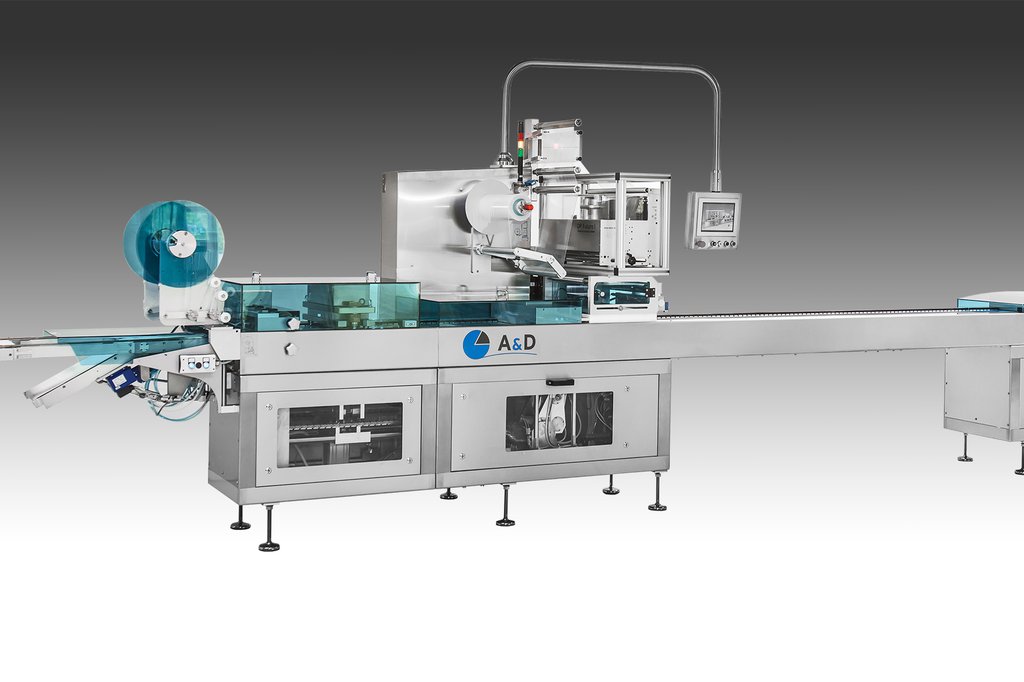

Thermoformer M-SYSTEM Compact, flexible, affordable: a solution that impresses.
The M-System is the ideal solution for customers looking for an efficient, economical and versatile system.
Thanks to its extremely small dimensions, the machine can be easily integrated into almost any production environment. Its high flexibility allows quick and easy adaptation to changing operational requirements. In addition, the M-System is modularly expandable – it grows with the customer's needs and can be adapted to new processes or production volumes at any time. This ensures that your investment remains both future-proof and scalable.
Versions
- M100 The compact basic model is optimally suited for less complex applications
- M110 The M100’s upgrade with a footprint smaller than 3 m² is based on a modular system and can be easily extended
- M285 The all-round model for the medium performance range impresses with its favourable price
-

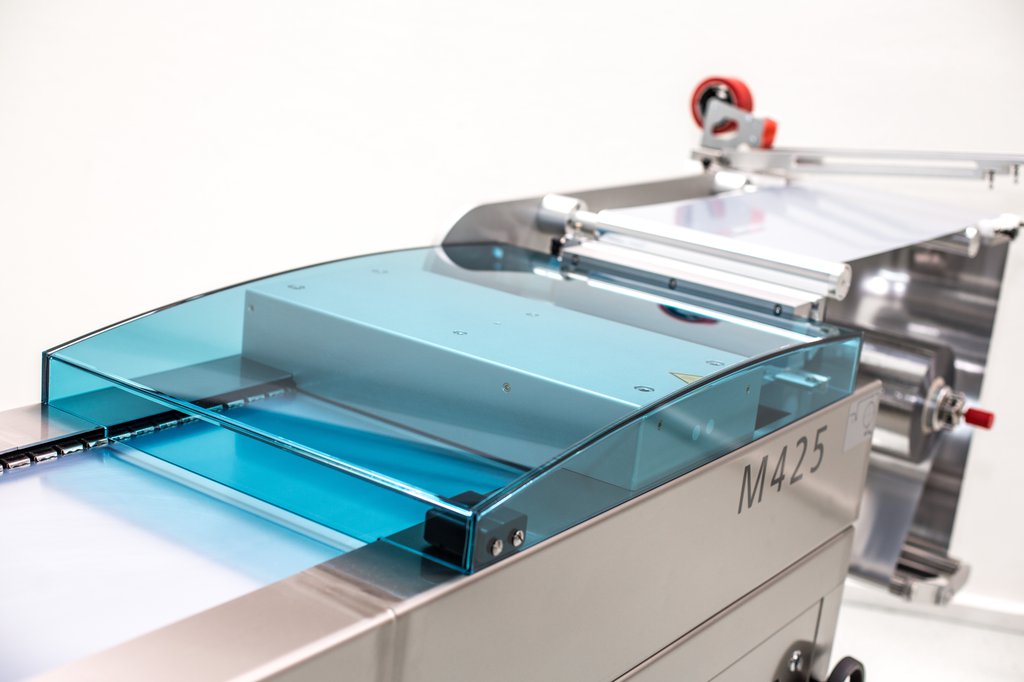

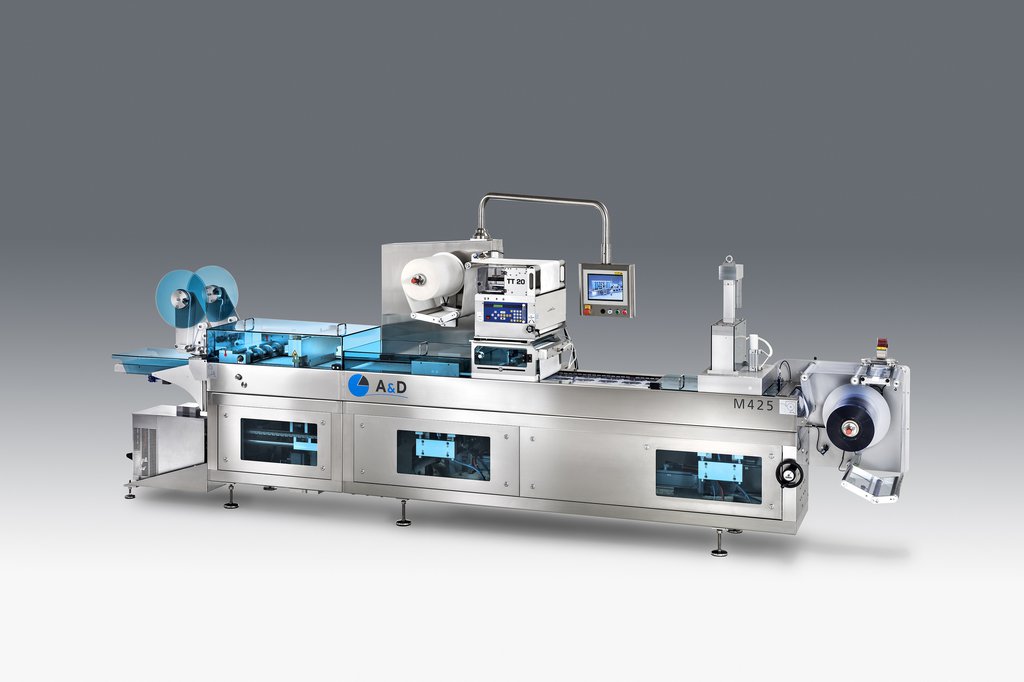

M425 The premium edition meets highest requirements in the upper performance range
Technical data and basic equipment*
*Exemplary for M425
- Film widths: 250, 285, 320, 355, 420, 460 mm
- Repeat length: bis 400 mm
- Control unit: S7-1500 HMI IPC 12″ operating board on swivel arm
- Drive: servomotor
- Sealing: frame sealing
- Return air collection in pneumatics
- Activated carbon filter for moulding air
Modular expandability – tailored to your requirements
Our machine solutions offer much more than standard functions. With over 5,000 available assemblies, we can cover almost any customer requirement – from simple integration to highly complex production lines.
And if we don't have the right module for you, we will work with you to develop one that is precisely tailored to your processes.
Examples of available modules and functions:
Quality and process control:
- Strip tear control
- Inline product control
- OCR recognition
- Print inspection
Cooling and atmosphere:
- Water chiller
- Vacuum and gas flushing device
Printing solutions directly on the top web:
- Thermal transfer printer
- Flexographic printer
- DoD printer single colour; two colours; CMYK

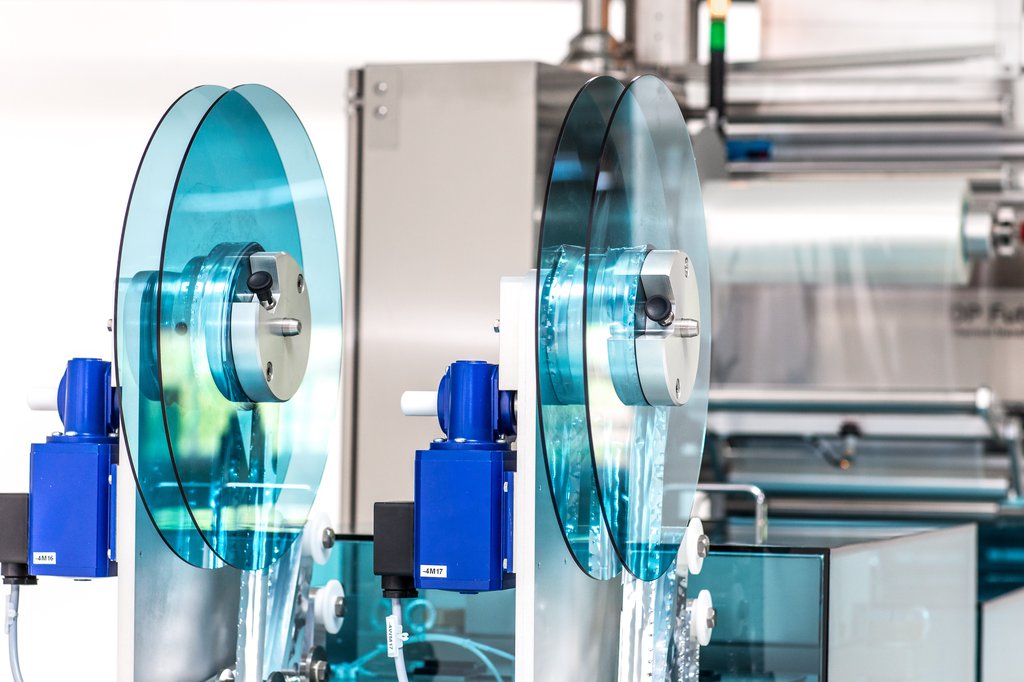

Film management:
- Advance warning of film end (bottom and upper web)
- Film end control (bottom and upper web)
Packaging and handling:
- Die cut station
- Package transfer device
- Automatic product feed
- Loading robot
This list is only a small selection of our capabilities. Our modular system architecture allows machines to be flexibly configured, expanded and adapted to new requirements at any time.
This means your system grows with your company – efficiently, economically and future-proof.
Data sheet
Our Service your advantage
In additional to developing your packaging as well as designing and qualifying your machines, our service also includes reliable support for your machine during production. This means that flexible adjustments to changing production conditions and simple retrofitting, e.g. with special equipment, are possible at any time without difficulty.
Our competent remote maintenance staff are available to answer any questions you may have about the machine. We also provide documentation and qualification in accordance with GMP guidelines.
